Mild Steel CNC Hydraulic Shearing Machine To Cut Metal Plate

Chiny Mild Steel CNC Hydraulic Shearing Machine To Cut Metal Plate dostawca
Mild Steel CNC Hydraulic Shearing Machine To Cut Metal Plate dostawca Mild Steel CNC Hydraulic Shearing Machine To Cut Metal Plate dostawca Mild Steel CNC Hydraulic Shearing Machine To Cut Metal Plate dostawca Mild Steel CNC Hydraulic Shearing Machine To Cut Metal Plate dostawca Mild Steel CNC Hydraulic Shearing Machine To Cut Metal Plate dostawca

Duży Obraz :  Mild Steel CNC Hydraulic Shearing Machine To Cut Metal Plate

Szczegóły Produktu:

Place of Origin: China-Wuxi Jinqiu Machinery Co.,ltd
Nazwa handlowa: Jinqiu
Orzecznictwo: CE and CQC
Model Number: QC12K-8X2500/3200/4000/5000/6000

Zapłata:

Minimum Order Quantity: 1 set
Cena: USD or RMB
Packaging Details: metal steel frame
Delivery Time: 55-60 days
Payment Terms: L/C, T/T
Supply Ability: 150 pcs per month
Contact Now
Szczegółowy opis produktu
Material: Q235 or Q345 mild steel Cutting thickness: 8 mm
Cutting length: 2.5/3.2/4/5/6 meters





Mild Steel CNC Hydraulic Shearing Machine To Cut Metal Plate

QC12K-8X2500
Technical Parameters:
QC12K-8X2500
Technical Parameters:
Mode: QC12K-8X2500
Shearing Size: thickness 8mm, length 2500mm
Shearing Angle: 1 degree 30 seconds
Plate Clamps: 13 pieces
Strokes: 14 times per min
Back gauge range: 20-600 mm
Main Motor:11 Kw
NC control system: China Estun E21S, with follwing founction:
                           1) control back gauge position
                           2) cutting gap control
                           3) cutting time control
                           4) parameter backup and restore
Volume of oil tank: 247L
Weight: 5300 kgs
Overall Dimensions: Length 3140 mm
Width 1610 mm
Height 1660 mm

QC12K-8X3200
Technical Parameters:
Mode: QC12K-8X3200
Shearing Size: thickness 8mm, length 3200mm
Shearing Angle: 1 degree 30 seconds
Plate Clamps: 14 pieces
Strokes: 10 times per min
Back gauge range: 20-600 mm
Main Motor: 11 Kw
NC control system: China Estun E21S, with follwing founction:
                            1) control back gauge position
                            2) cutting gap control
                            3) cutting time control
                            4) parameter backup and restore
Volume of oil tank: 247L
Weight: 6300 kgs
Overall Dimensions: Length 3840 mm
Width 1610 mm
Height 1660 mm

QC12K-8X4000
Technical Parameters:
Mode: QC12K-8X4000
Shearing Size: thickness 6mm, length 4000mm
Shearing Angle: 1 degree 30 seconds
Plate Clamps: 18 pieces
Strokes: 8 times per min
Back gauge range: 20-600 mm
Main Motor: 11 Kw
NC control system: China Estun E21S, with follwing founction:
                            1) control back gauge position
                            2) cutting gap control
                            3) cutting time control
                            4) parameter backup and restore
Volume of oil tank: 247 L
Weight: 9150 kgs
Overall Dimensions: Length 4700 mm
Width 1690 mm
Height 1830 mm

QC12K-8X5000
Technical Parameters:
Mode: QC12K-8X5000
Shearing Size: thickness 6mm, length 5000mm
Shearing Angle: 1 degree 30 seconds
Plate Clamps: 22 pieces
Strokes: 7 times per min
Back gauge range: 20-800 mm
Main Motor: 15 Kw
NC control system: China Estun E21S, with follwing founction:
                           1) control back gauge position
                           2) cutting gap control
                           3) cutting time control
                           4) parameter backup and restore
Volume of oil tank: 587L
Weight: 18500 kgs
Overall Dimensions: Length 5860 mm
Width 2252 mm
Height 2215 mm

QC12K-8X6000
Technical Parameters:
Mode: QC12K-8X6000
Shearing Size: thickness 8mm, length 6000mm
Shearing Angle: 1 degree 30 seconds
Plate Clamps: 25 pieces
Strokes: 6 times per min
Back gauge range: 20-800 mm
Main Motor: 15 Kw
NC control system: China Estun E21S, with follwing founction:
                            1) control back gauge position
                            2) cutting gap control
                            3) cutting time control
                            4) parameter backup and restore
Volume of oil tank: 689L
Weight: 24600 kgs
Overall Dimensions: Length 6870 mm
Width 2468 mm
Height 2410 mm

Product introduction:
1. Swing beam type top blade, hydraulic driven, stable and reliable, easy to operate
2. Blade gap can be adjusted accurately and rapidly; top blade stroke can be adjusted stepless to improve cutting speed
3. Matching variety of back gauges and blade which controled by CNC system

 Mild Steel CNC Hydraulic Shearing Machine To Cut Metal Plate

Quick Details:
Condition: New
Material/ Metal Processed: Carbon Steel Q235 or Q345
Extra Service: Machining
Electric componets: Schneider famous brand
Other parts: Ball screw, servo motor....
Place of Origin: Wuxi city, Jiangsu, China,
Machine Type: Hyraulic Shearing Mchine
Power: Hydraulic
Color: white, blue, yellow....
Control syste: E200S, DAC310,DAC 360, OR DTC660
Usage range: cutting  metal sheet.

Packageing & Delivery
Packaging details: metal frame pallet
Delivery detail: 55-60 days



The Main Structure Character

 Welded steel plate, the frame consists of right and left wall boards, working table, oil box, slot steel and etc. The stress of the welded parts can be eliminated by vibration. The machine enjoys high accuracy and high strength and can be transported easily.


Why Choose Us?
Jinqiu is a famouse and long history brand in China, after more than 47 years research, our design from technology, structure and precision are very mature, many other factories just copy our outlooking, but the process is not advantages. And we also obtained the CE and more strict standard certification. Our machines distribute worldwide about 20 countries which penetrate into more metal plate industries.

Questions:
1. Are you a trading company or factory?
  --- We are factory occupying more than 62,000 m2,  with excellent and professional technical team, 25 R&D personnel, professional after-sales team, and around 300 workers producing more than 1000sets machines each year.

2. Does your company supply and build the machines to suit customer's needs and specifications?
  --- Yes, we can custom-made the machine according to your requirements.

3. What is your advantages over your competitors' machine?
  --- Our machines can be equipped with high configuration, and main components are from famous brands. We have strict quality control system, process technology system, technology innovate system.

4. Does the machine come with a guarantee?
  --- We offer one year of warranty, during this time, if any parts broken, we will send a new one to customer free of charge, and we will also supply on-line the technical guidance for ever free.

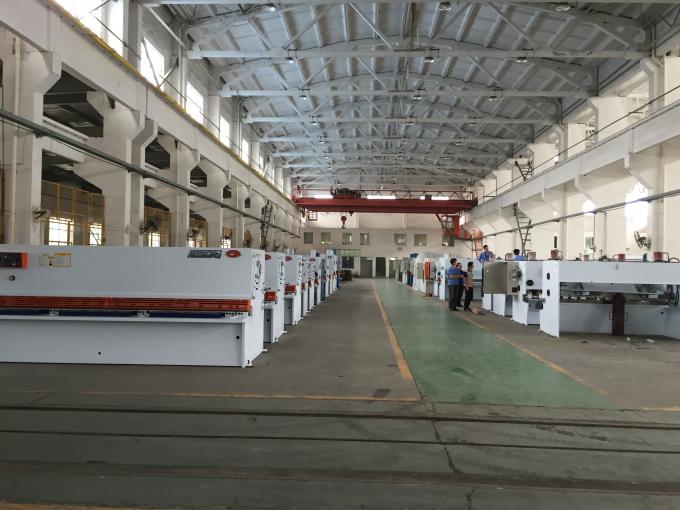

5. Can I go to visit your factory?
  --- Welcome to visit our factory to know our processing and technology power. And you will see different sample machine at our workshop.

6. How to get quicker quotation?
  --- When you send us inquiry, please offer your requirement information:
• What kind of metal plate and the thickness?
• How about your configuration requirement?
• You also send us your bend products image, our engineer can design for you.
These information is helpful for us to choose suitable equipment solution and price quickly.
